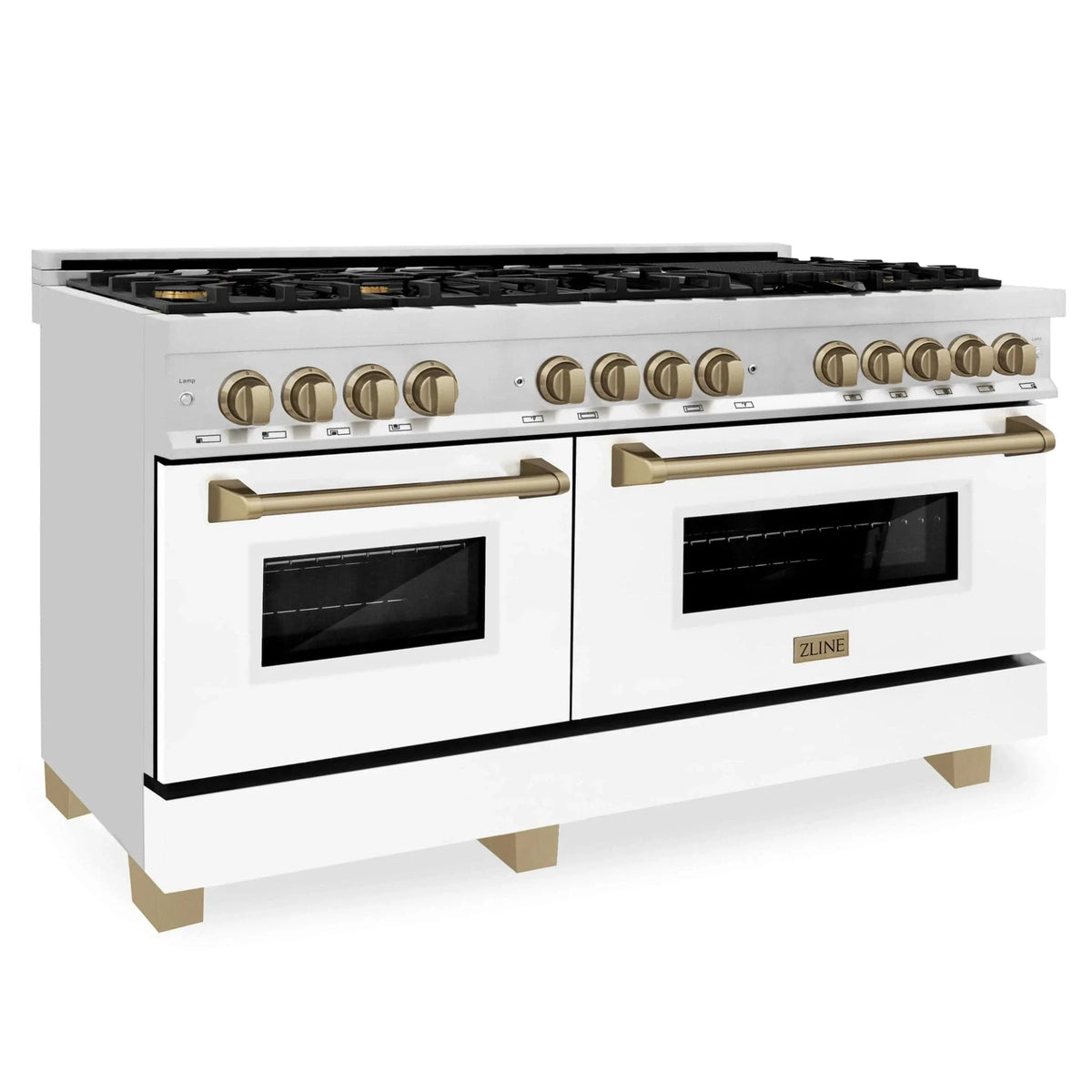

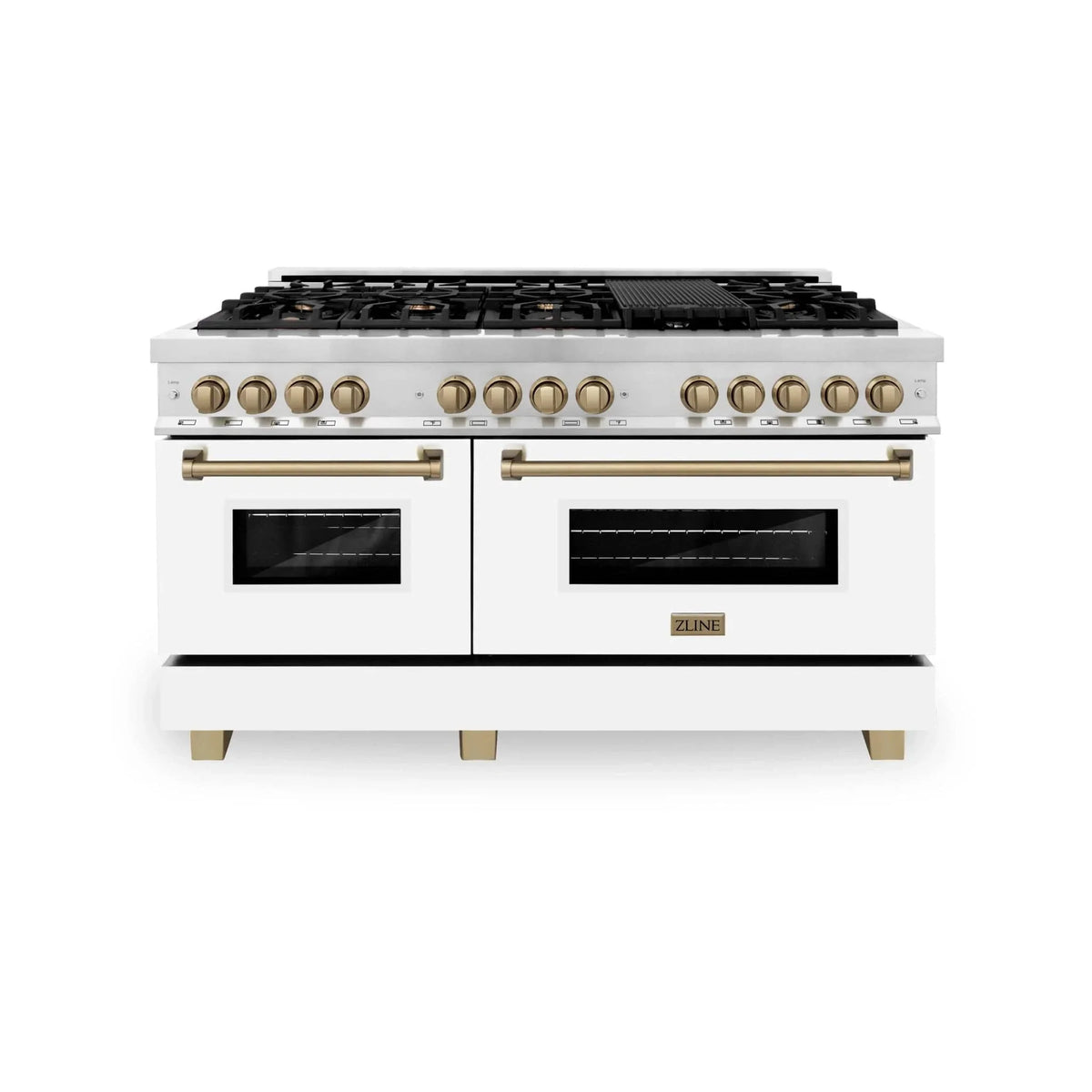

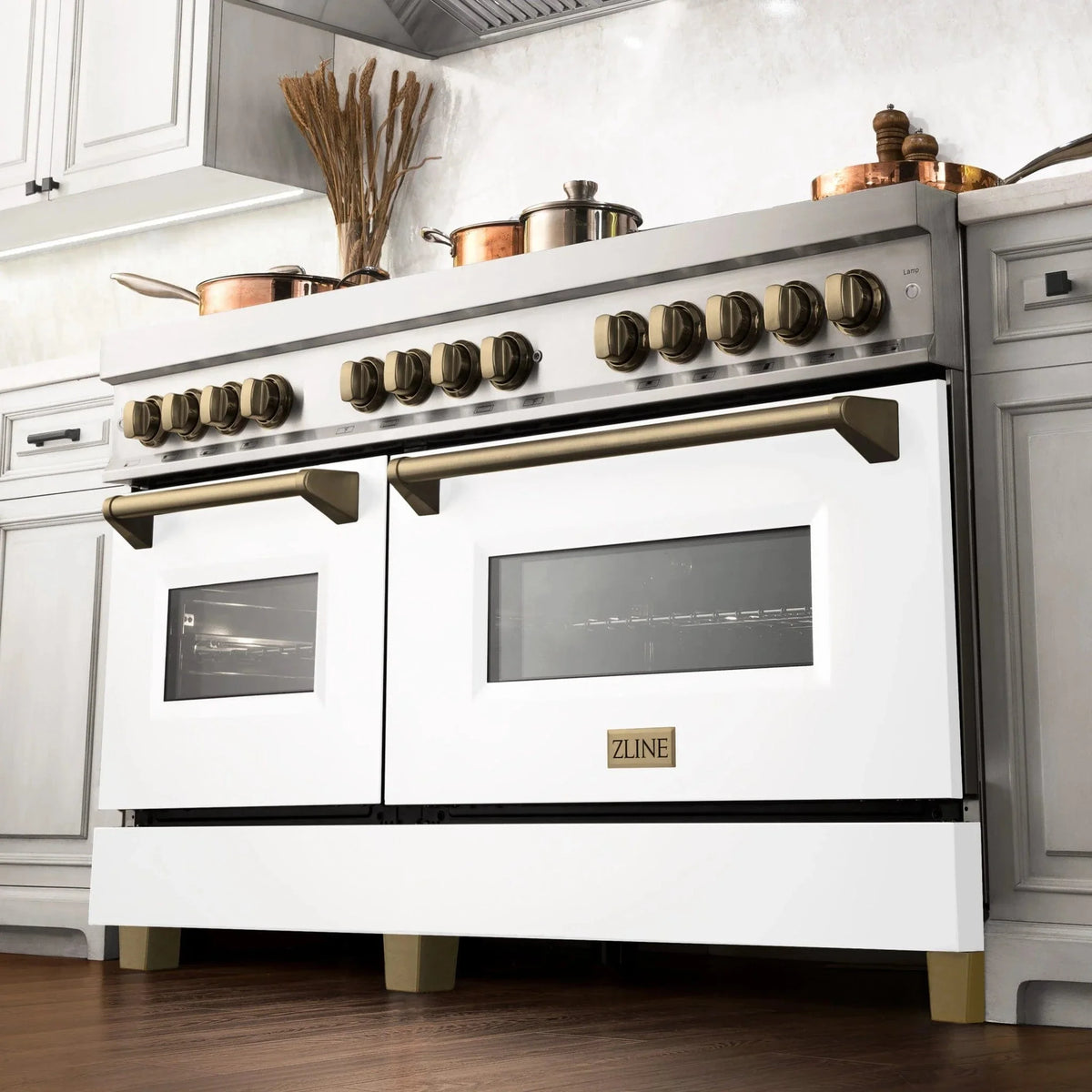

The ZLINE Autograph Edition 60 in. Legacy dual fuel range (RAZ-WM-60-CB) has 7.4 cu. ft. of oven space in 2 electric convection ovens plus a 9-burner Italian gas cooktop. It has white matte doors and Champagne Bronze knobs and handles.
60"wide
103,000total BTU
7.4cu. ft. oven
1-yearwarranty
Why it stands out
- Legacy Series – The Legacy Professional Range Series is the base of ZLINE's family-focused mission to make high-end appliances attainable.
- Champagne Bronze Accents – Champagne Bronze knobs and a handle set this Autograph Edition dual fuel range apart.
- White Matte Doors – The range is fitted with 2 White Matte oven doors.
- Gas Cooktop, Electric Ovens – Dual fuel cooking pairs a gas cooktop with 2 electric convection ovens for even heat.

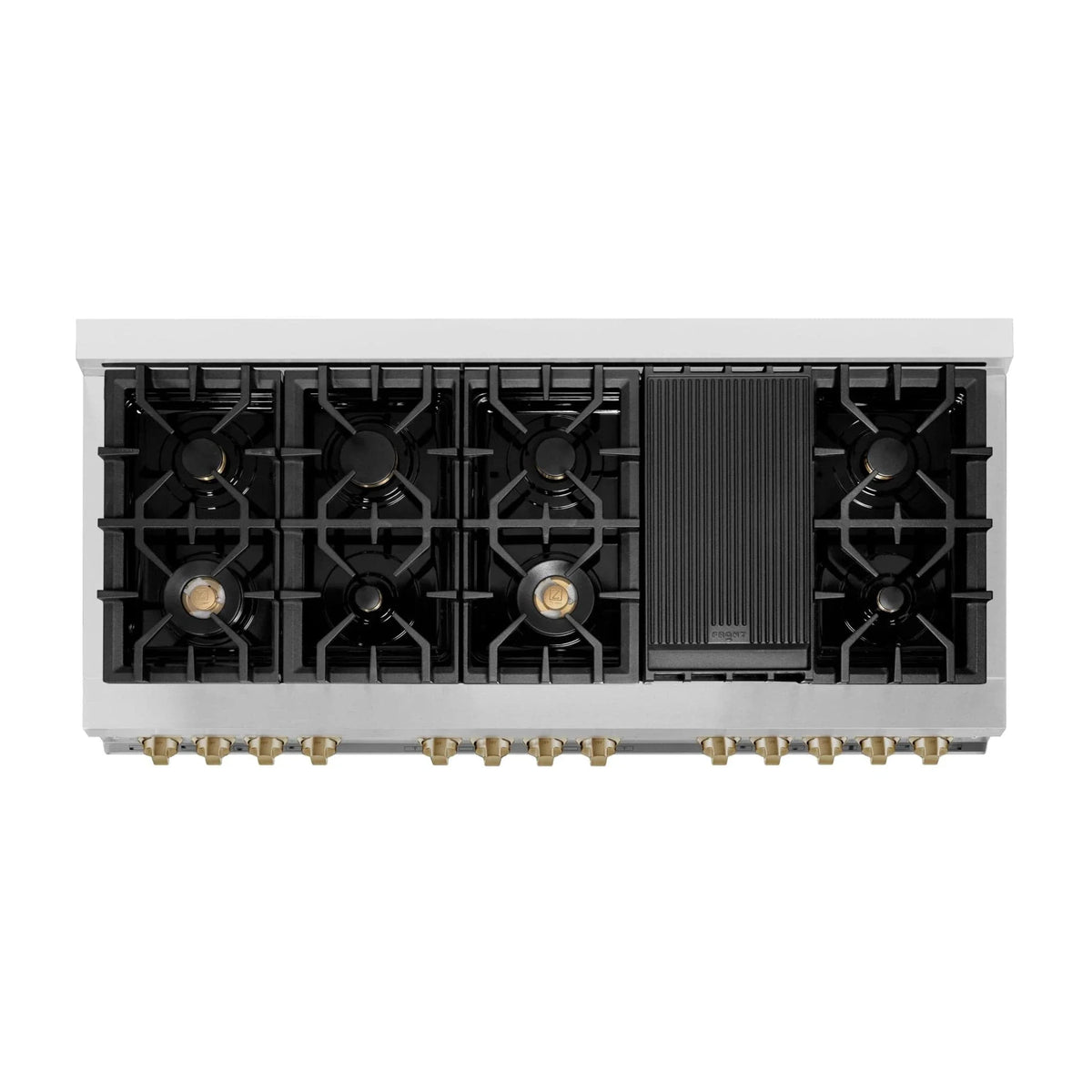

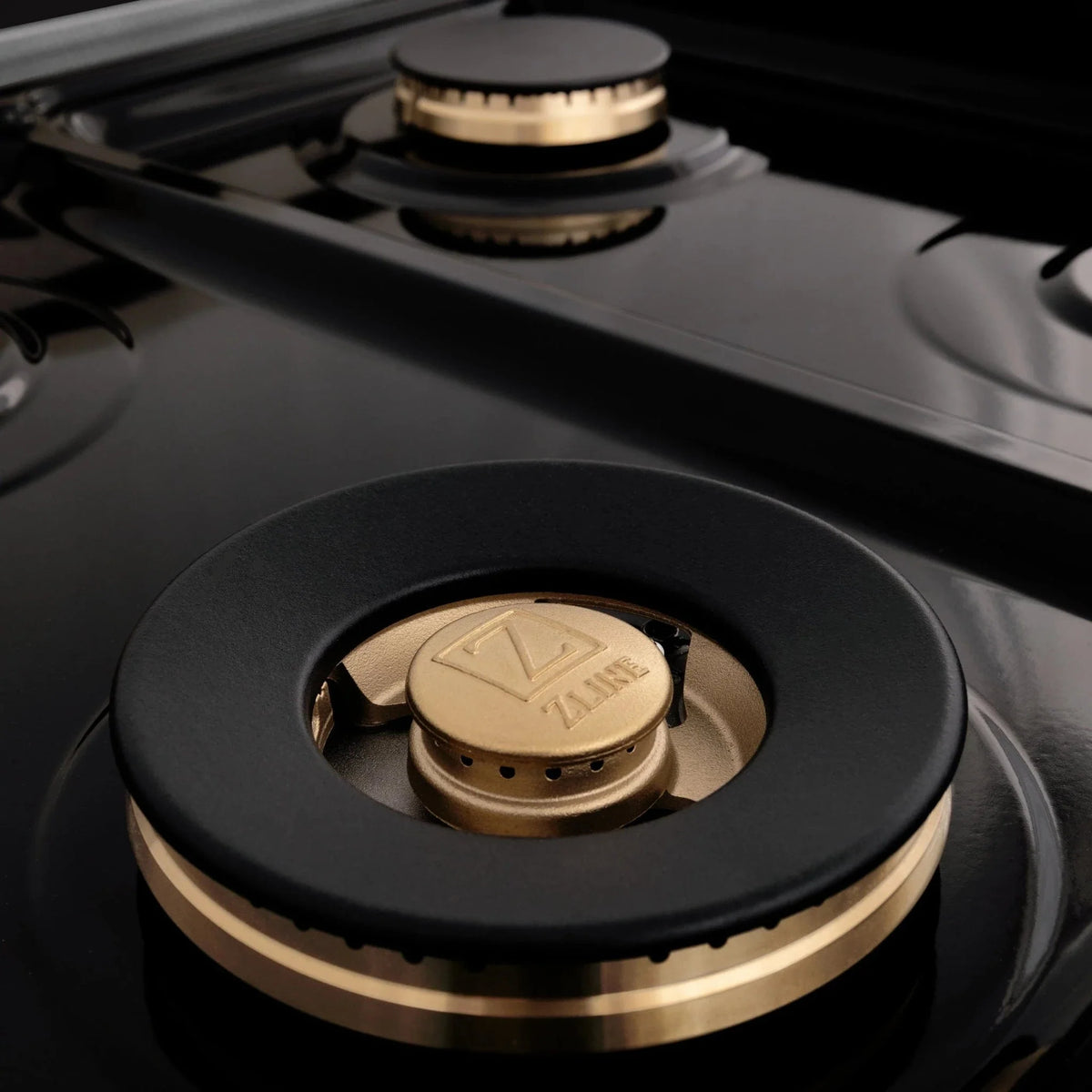

- Nine Sealed Burners – The gas cooktop has 9 hand-cast Italian sealed burners, including a large fish burner.
- Landscape Oven Windows – Landscape-style oven doors give a wide view of the food while it cooks.
- Oven Capacity – Total oven volume is 7.4 cu. ft.; the ovens take pans as wide as 27 in. or 15 in.
More features
- Pre-Seasoned Griddle – The cast iron griddle comes pre-seasoned, holds heat well, and spreads it evenly for searing meat and vegetables.
- 304 Stainless Steel Body – The body is 304-grade stainless steel, and the cast iron grates exceed industry standards.
- Oven Insulation – Both doors have triple-layer glass plus an aluminum mesh seal, retaining heat and keeping temperatures steady.
- Adjustable Height – Adjustable legs set the overall range height anywhere between 36 and 38.5 inches.
- StayPut Hinges – Hinges are built to bear the whole weight of the oven doors, adding convenience and safety.

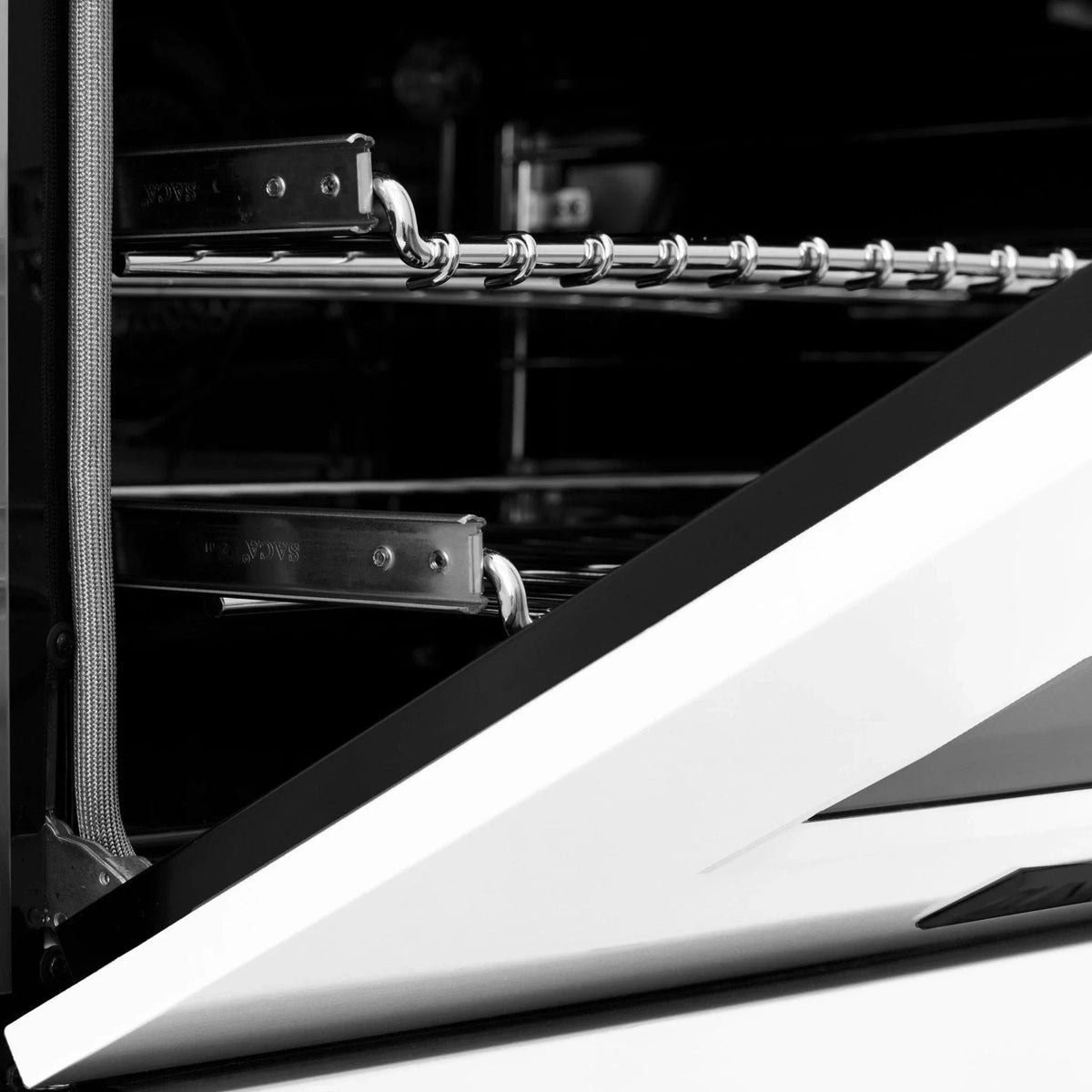

- Ball-Bearing Oven Racks – Four durable ball-bearing oven racks slide smoothly, which helps with larger dishes.
- Halogen Oven Lights – Three halogen lights illuminate both ovens and are switched from the front control panel.
- Easy Cleaning – The hand-finished porcelain cooktop is a single piece, so cleaning and upkeep are simple.
- LP Conversion Kit – An LP conversion kit is included for switching from natural gas to propane; a professional must do the conversion.
- Lifetime Burner Warranty – Limited lifetime coverage on Italian burners: replacement burners and caps, plus parts and labor on spark tips, if defective in materials or workmanship.
- Manufacturer Warranty – The manufacturer provides one year of parts and service coverage.
- Assembly Required – Ships in multiple boxes and needs minimal assembly on arrival.
Key specifications
| Product Depth (in.) | 27.50 |
| Product Width (in.) | 59.88 |
| Product Height (in.) | 36.13 |
| Oven Interior Dimensions (in) | 24.875 in. W x 17.75 in. D x 16 in. H |
| Depth With Door(s) Open 90 Degrees (in.) | 41.8 |
| Range Size (Width) | 60 in. |
| Appliance Category | Dual Fuel Range |
| Color/ Finish Family | Stainless Steel, White Matte Door |
| Hardware Color/Finish | Champagne Bronze |
| Back Left Burner BTU | 10200 |
| Back Left Middle Burner BTU | 13100 |
| Back Right Middle Burner BTU | 10200 |
| Back Right Burner BTU | 10200 |
| Front Left Burner BTU | 18000 |
| Front Left Middle Burner BTU | 5100 |
| Front Right Middle Burner BTU | 18000 |
| Front Right Burner BTU | 5100 |
| Fish Burner BTU | 13100 |
| Total BTUs | 103000 |
| Cooktop Features | (8) Burners, (1) Fish Burner with hand-finished stainless steel one piece cook top and electronic spark ignition for all burners |
| Control Type | Manual Front Control |
| Capacity of Oven (cu. ft.) | 7.4 (2.8 + 4.6) |
| Product Weight (lb.) | 450 |
| Fuel Type | Convection Electric Oven- Gas Cooktop |
| Oven Features | Convection Gas Oven- 4.6 cu. ft./ 2.8 cu. ft.deep oven- Triple Glass Window- Dual Lighting- Professional Aluminum Mesh Seal |
| Voltage | 240vac |
| Frequency | 60 Hz |
| Amps | 40 |
| Convection Fan | Yes |
| Certifications and Listings | CSA Listed |
| Warranty | 1 year parts and service, limited lifetime warranty on burners |
Good to know
- Brass burners naturally form a patina over time; this oxidation is expected and is not covered by the burner warranty or grounds for return.
