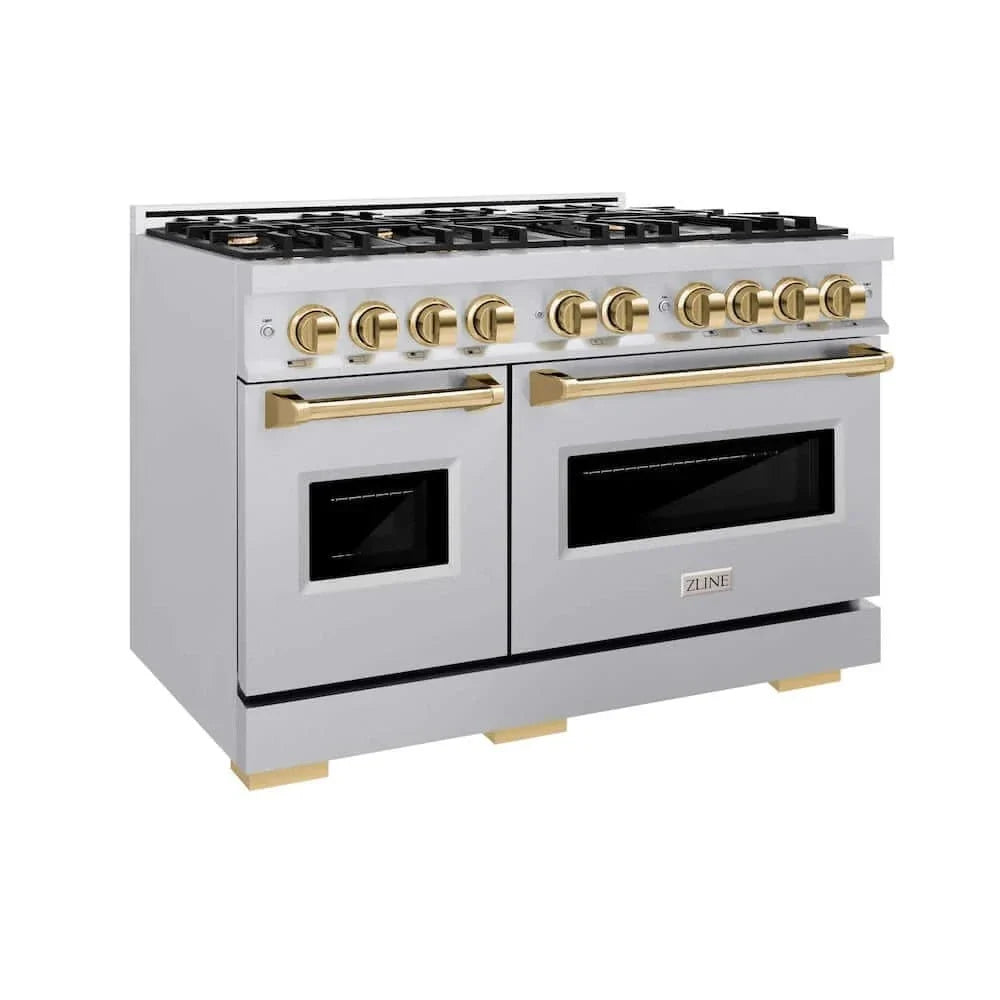

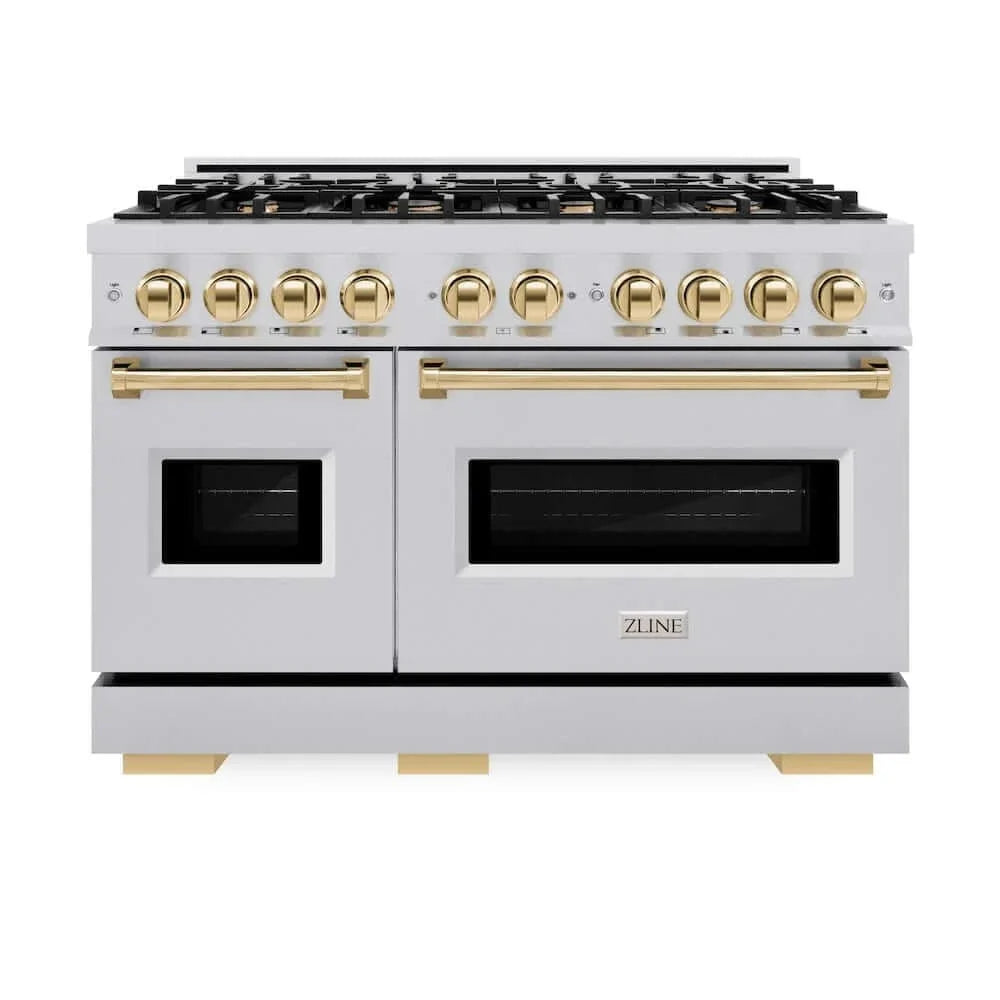

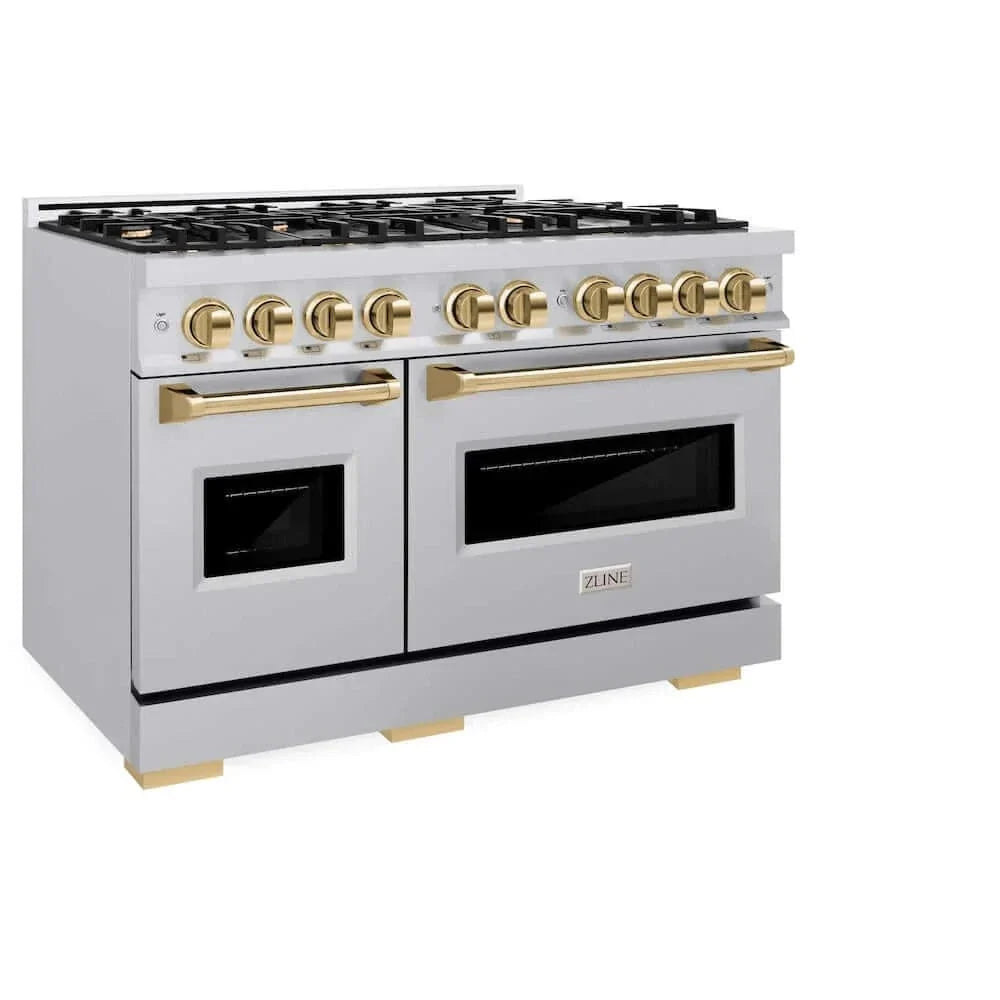

The ZLINE Autograph Edition 48 in. 6.7 cu. ft. Classic double oven dual fuel range (CDRZ-48-G) has an 8-burner Italian gas cooktop, a large electric convection oven, and a small bake-and-broil oven. It has polished gold knobs and handles.
48"wide
94,000total BTU
6.7cu. ft. oven
1-yearwarranty
Why it stands out
- Classic Series – The Classic Professional Range Series has a timeless design and features engineered to balance high-end quality with affordability.

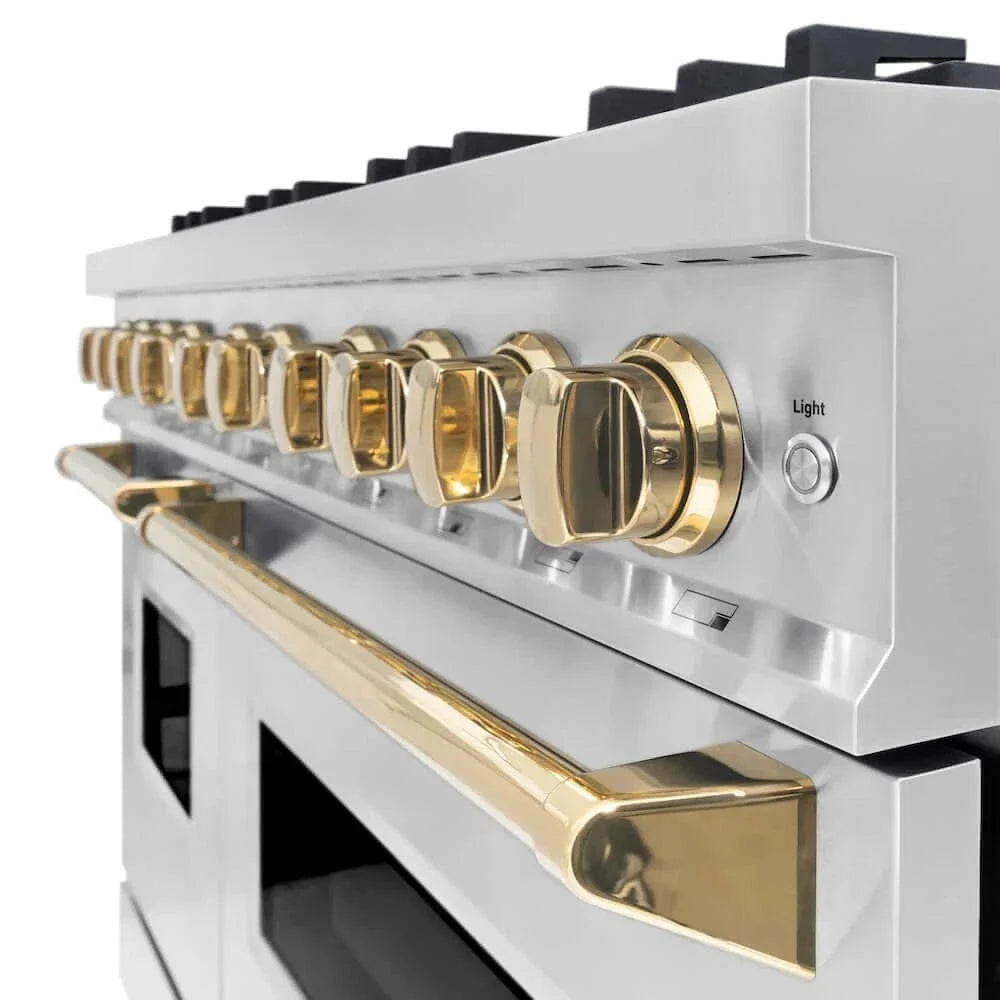

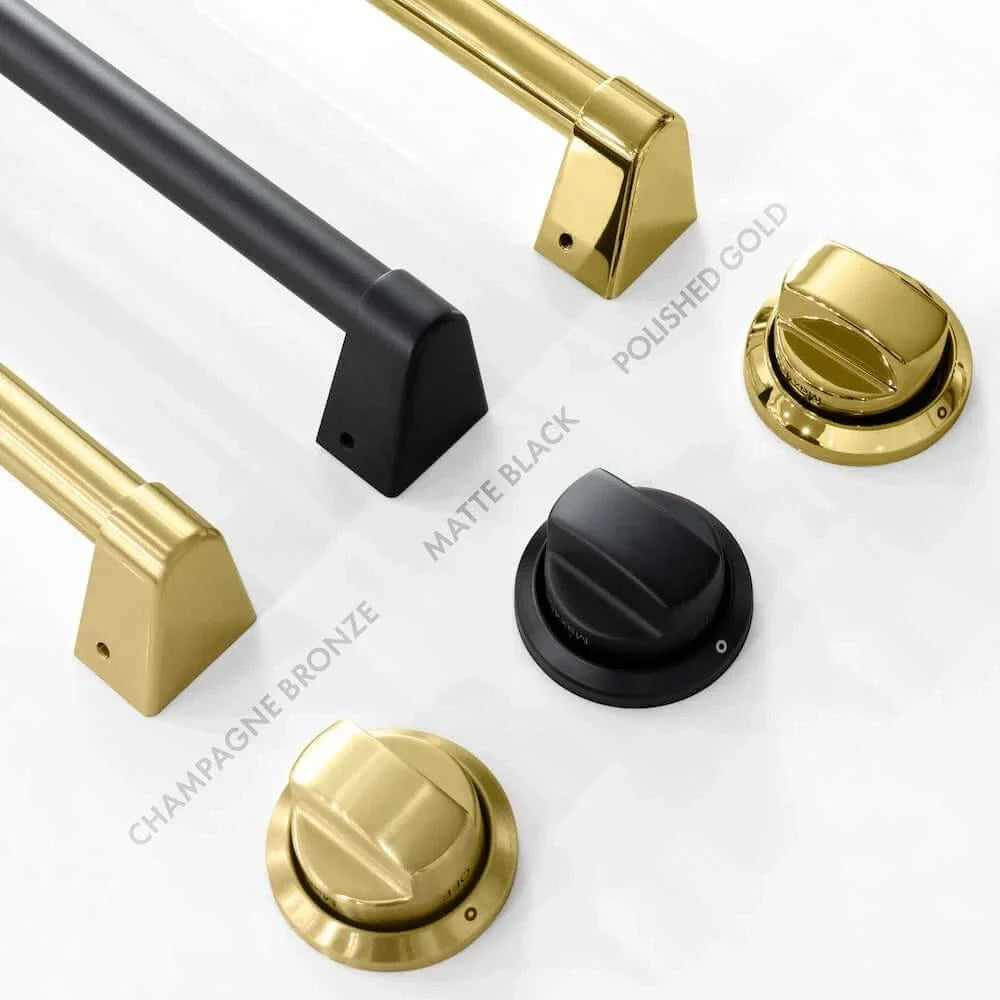

- Polished Gold Accents – Polished Gold knobs and handles set this Autograph Edition dual fuel range apart.
- Dual Fuel Cooking – A powerful gas cooktop plus two electric ovens, whose high-grade heating elements keep temperatures consistent.

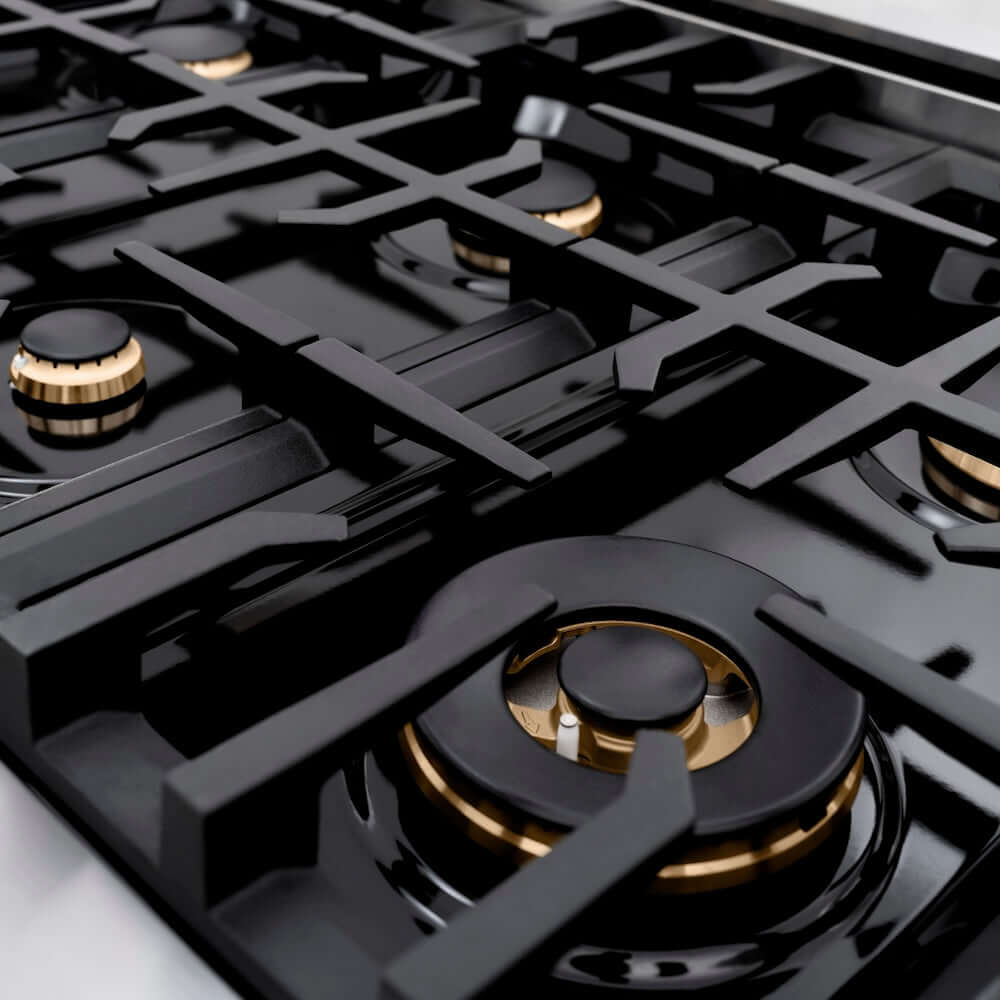

- Auto-Reignition Burners – 8 Italian-made gas burners reignite automatically, improving temperature control and cooktop safety.
- Landscape Oven Windows – Landscape-style oven doors give a wide view of both ovens so you can check that dishes are cooking properly.
- Fast Preheating – Digital thermostat technology gives faster preheating than industry norms and steady convection cooking.
- Dual Function Burners – 2 Dual Function Burners simmer at 800 BTUs or sear at 20,000 BTUs.
More features
- Quiet Operation – A built-in cooling fan keeps temperatures at safe levels while running with very little noise.

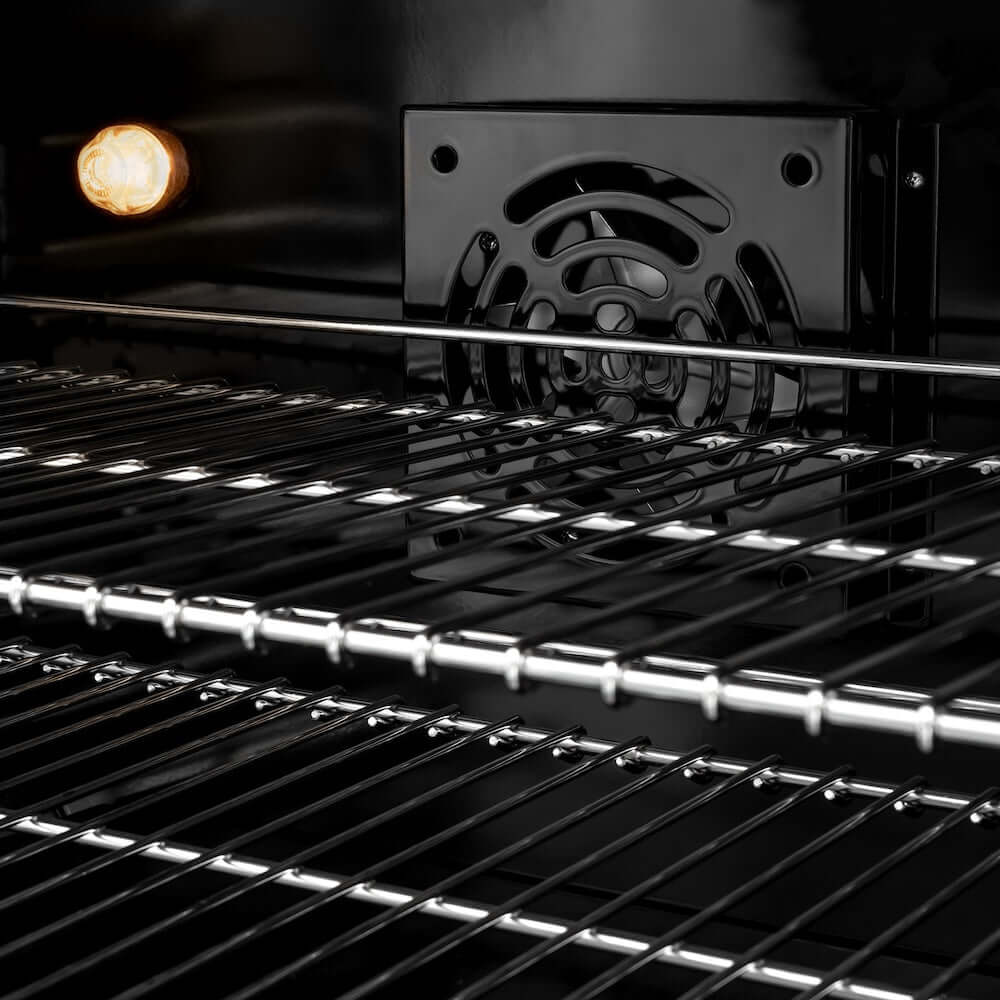

- Convection Fan – A high-speed, high-wattage convection fan spreads heat precisely through the large oven, so several bakes are easy.
- Oven Capacity – The 6.7 cu. ft. total capacity takes pans 20 in. wide in the big oven and 10 in. wide in the small one.

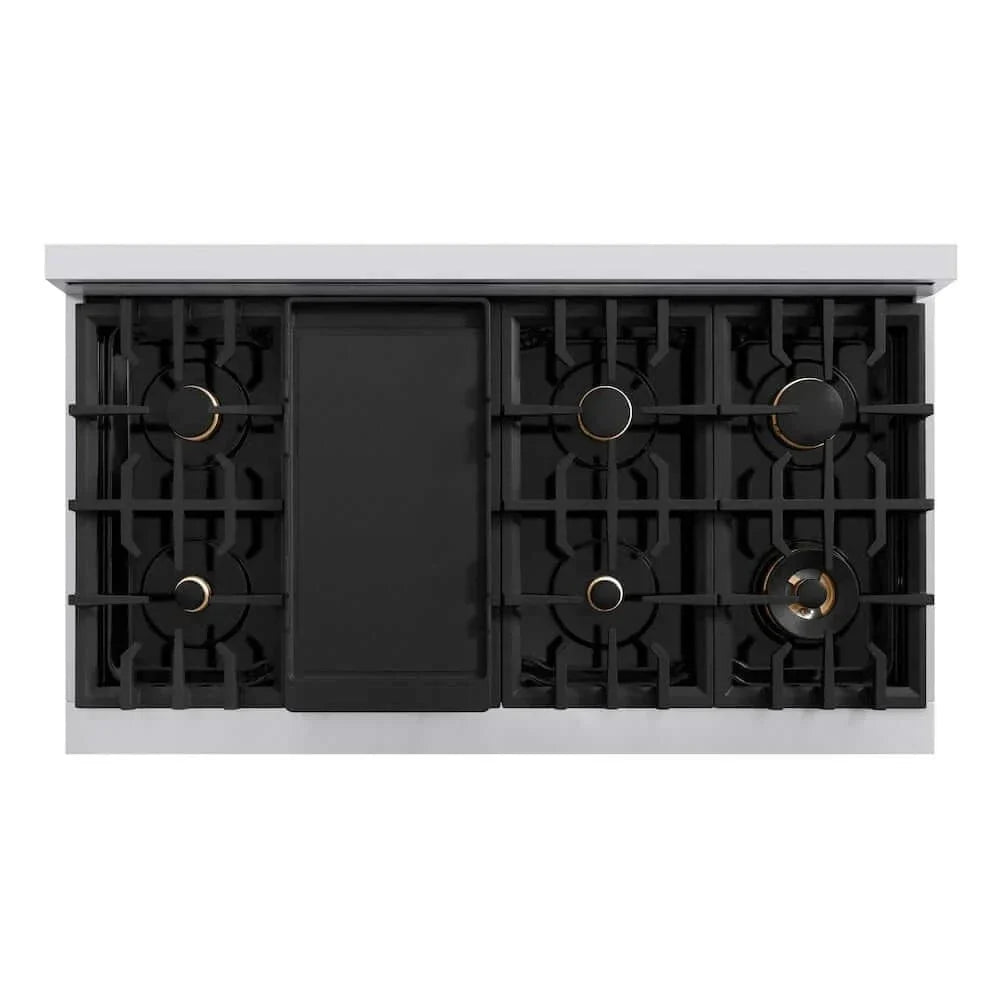

- Reversible Cast-Iron Griddle – The nonstick reversible cast iron griddle sears meat and vegetables on its grill side and handles sandwiches and hearty breakfasts on its flat side.

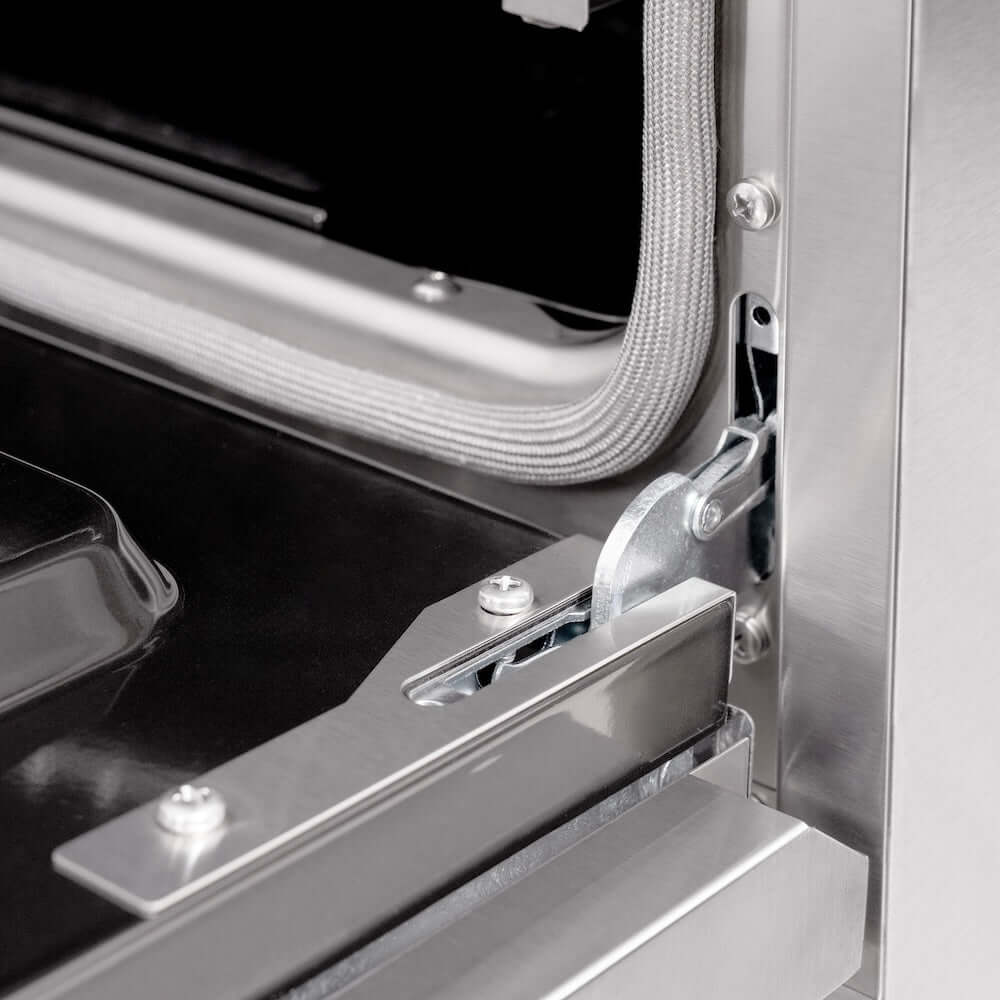

- StayPut Hinges – Hinges are built to bear the whole weight of the oven doors, adding convenience and safety.
- Oven Insulation – Both ovens have triple-layer glass doors with large windows and aluminum mesh seals, which retain heat and keep temperatures consistent.

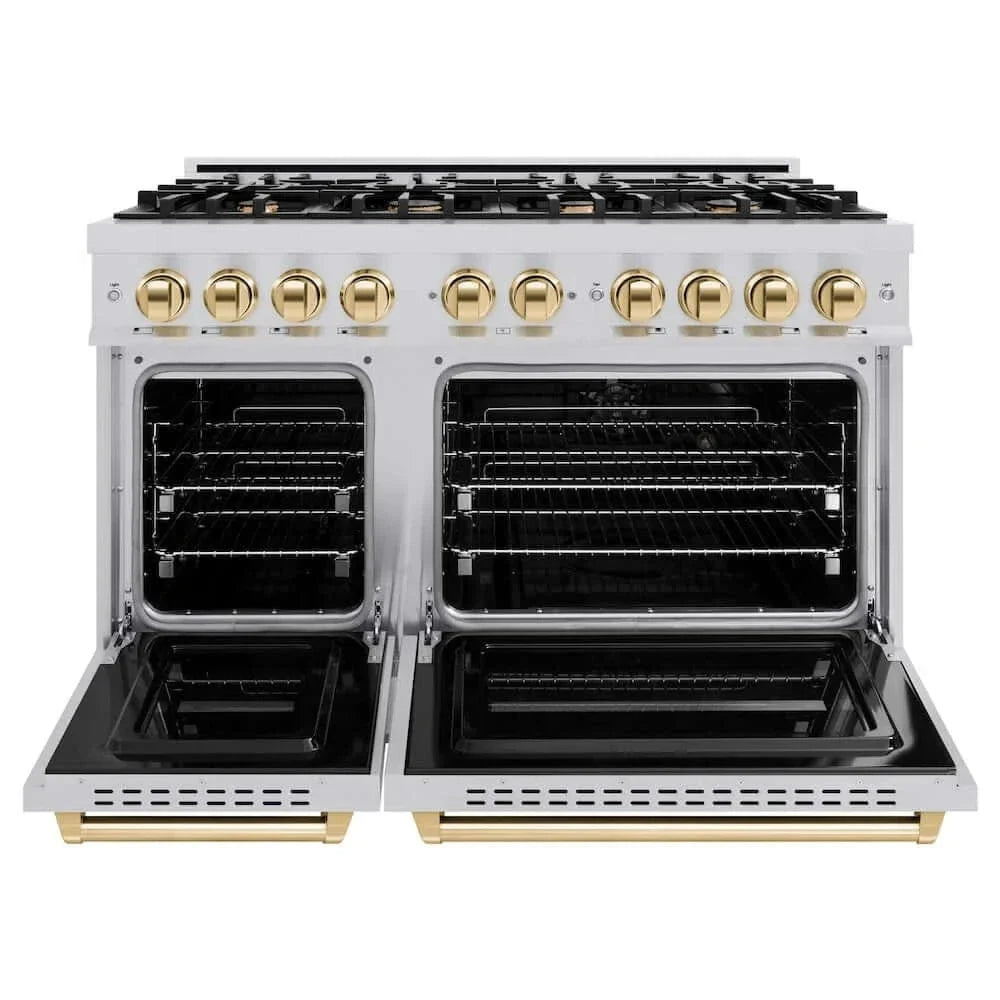

- Ball-Bearing Oven Racks – Four durable ball-bearing racks, two in each oven, slide smoothly when handling larger dishes.
- 430 Stainless Steel Body – The body is 430-grade stainless steel with cast iron grates that exceed standards for professional use.
- Halogen Oven Lights – Three halogen lights illuminate both ovens and are switched from the front control panel.
- Easy Cleaning – The hand-finished porcelain cooktop is a single piece, so cleaning and upkeep are simple.
- Assembly Required – Ships in multiple boxes and needs minimal assembly on arrival.
- LP Conversion Kit – An LP conversion kit is included for switching from natural gas to propane; a professional must do the conversion.
- Lifetime Burner Warranty – Limited lifetime coverage on Italian burners: replacement burners and caps, plus parts and labor on spark tips, if defective in materials or workmanship.
- Manufacturer Warranty – The manufacturer provides one year of parts and service coverage.
Key specifications

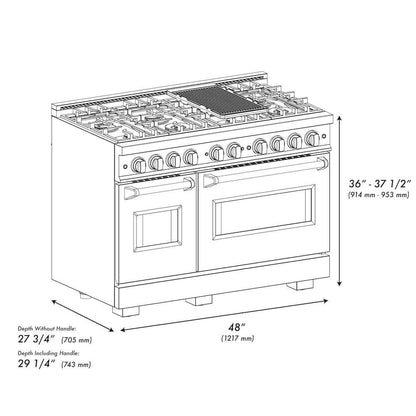

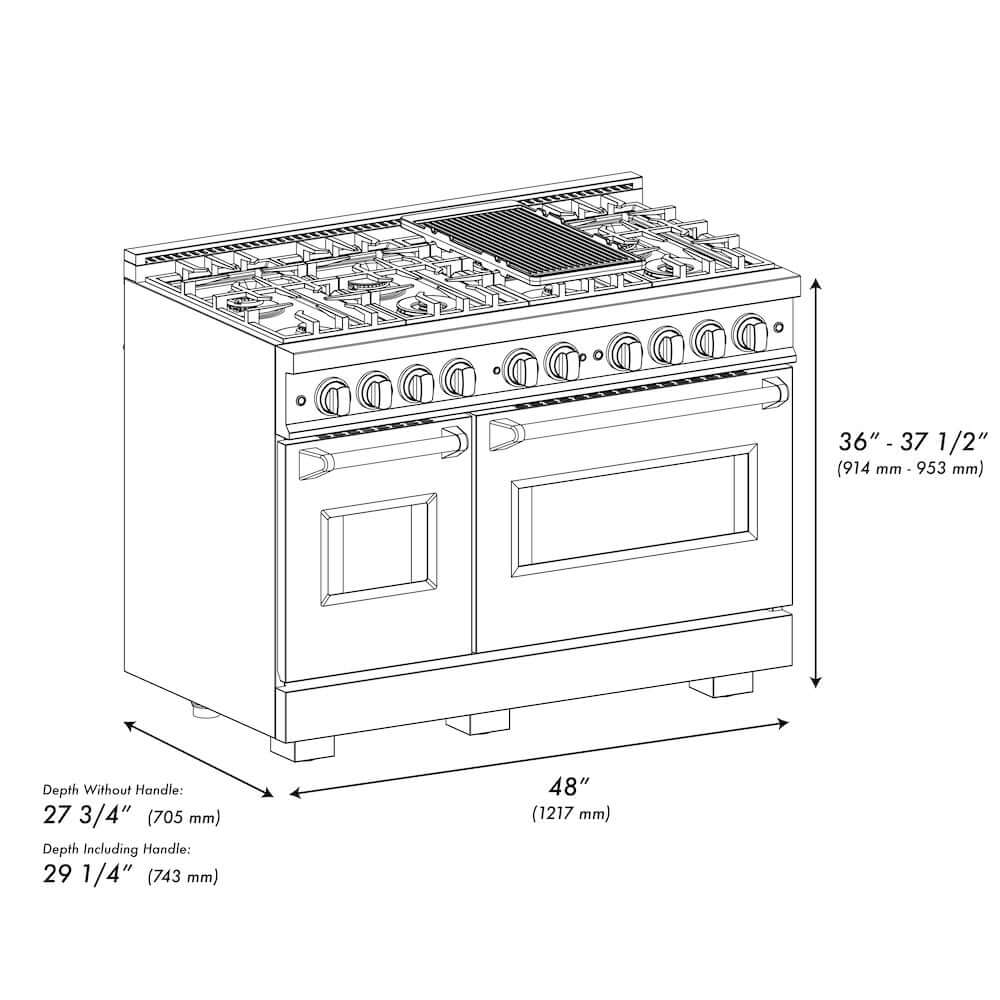

| Product Depth (in.) | 27.75 |
| Product Width (in.) | 47.88 |
| Product Height (in.) | 36 |
| Oven Interior Dimensions (in) | 24.875 in. W x 17.75 in. D x 16.00 in. H |
| Depth With Door(s) Open 90 Degrees (in.) | 45.1 |
| Range Size (Width) | 48 in. |
| Appliance Category | Dual Fuel Range |
| Color/ Finish Family | Stainless Steel |
| Hardware Color/Finish | Gold |
| Back Left Burner BTU | 9000 |
| Back Left Middle Burner BTU | 12000 |
| Back Right Middle Burner BTU | 9000 |
| Back Right Burner BTU | 12000 |
| Front Left Burner BTU | 6000 |
| Front Left Middle Burner BTU | 20000 |
| Front Right Middle Burner BTU | 6000 |
| Front Right Burner BTU | 20000 |
| Total BTUs | 94000 |
| Cooktop Features | (8) Brass Burners with Porcelain Cook Top with electronic spark ignition for all burners |
| Control Type | Manual Front Control |
| Capacity of Oven (cu. ft.) | 6.7 (4.2 + 2.5) |
| Product Weight (lb.) | 419 |
| Fuel Type | Convection Electric Oven- Gas Cooktop |
| Oven Features | Manual Clean - Convection Electric Oven - 6.7 cu. ft. deep oven |
| Voltage | 240V |
| Frequency | 60 Hz |
| Amps | 35A |
| Convection Fan | Yes |
| Certifications and Listings | ETL Listed |
| Warranty | 1 year parts and service, limited lifetime warranty on burners |
Good to know
- Cutout dimensions: 48.13 in. W x 24.75 in. D x 36 in. H.
- Oven interior: 13.38 in. (left oven) and 24.88 in. (right oven) W x 17.75 in. D x 16 in. H.
Delivery
Most ZLINE orders ship within 5–8 business days — call (800) 604-1380 Ext. 2 to confirm stock and lead time. It ships by freight to your door; the carrier calls ahead to book a delivery window and a signature is required on delivery. Free shipping, our 30-day return policy and price matching apply.
