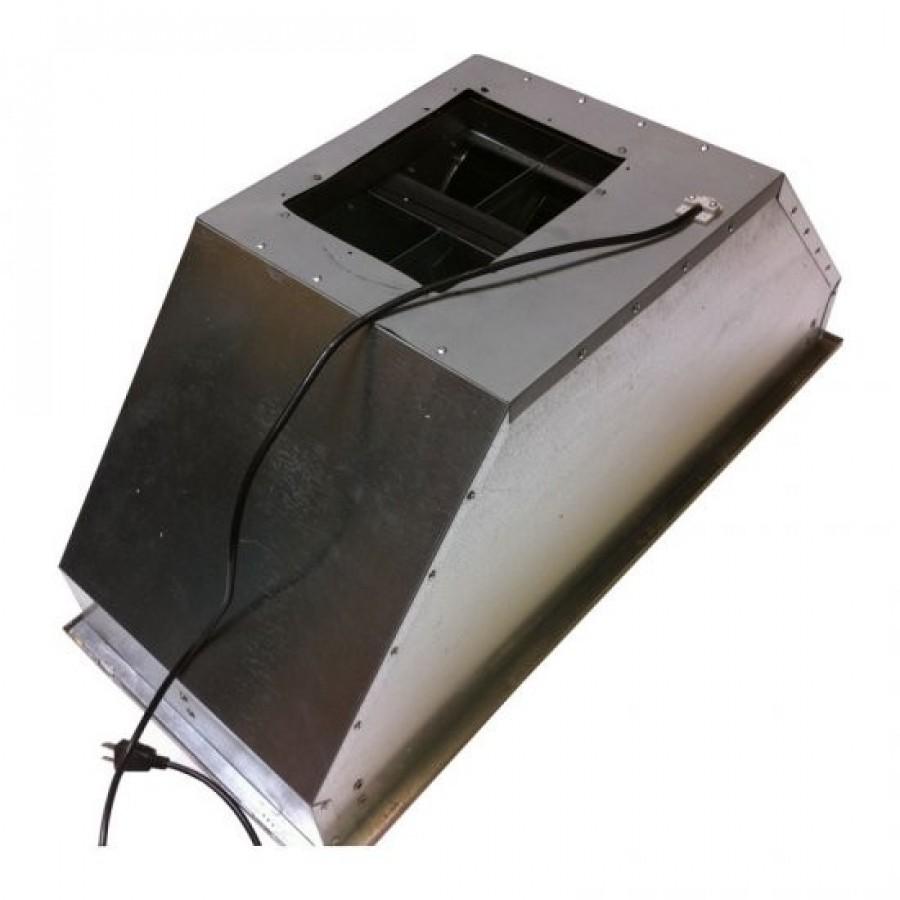

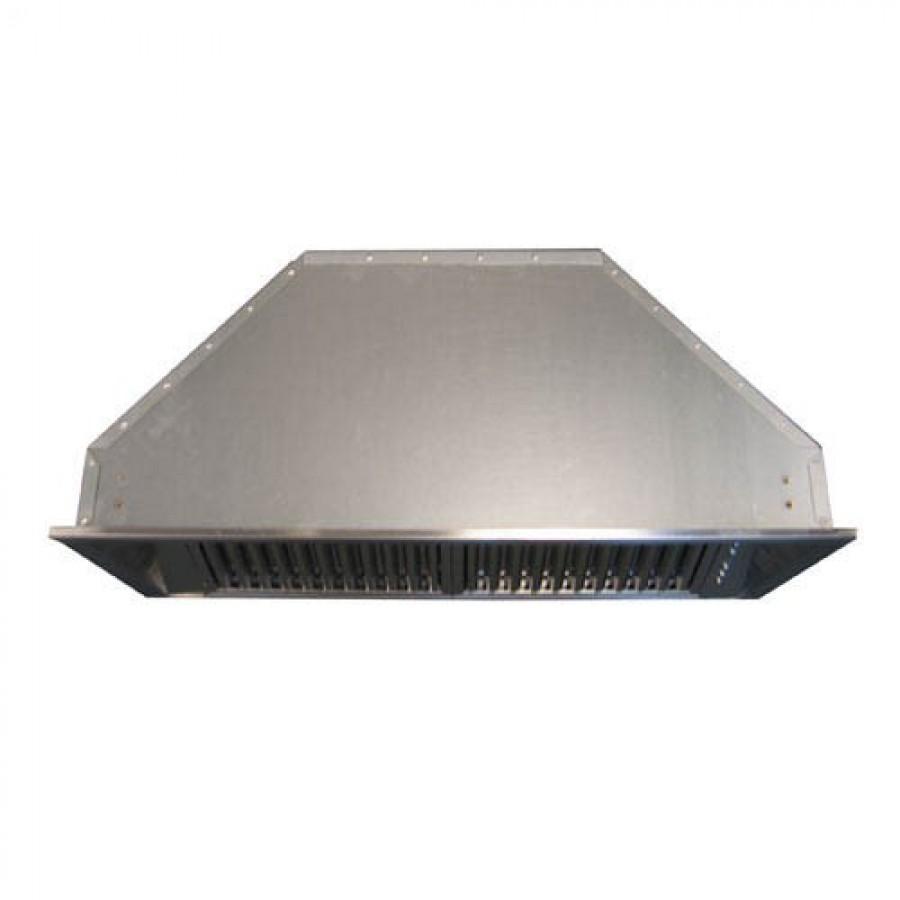

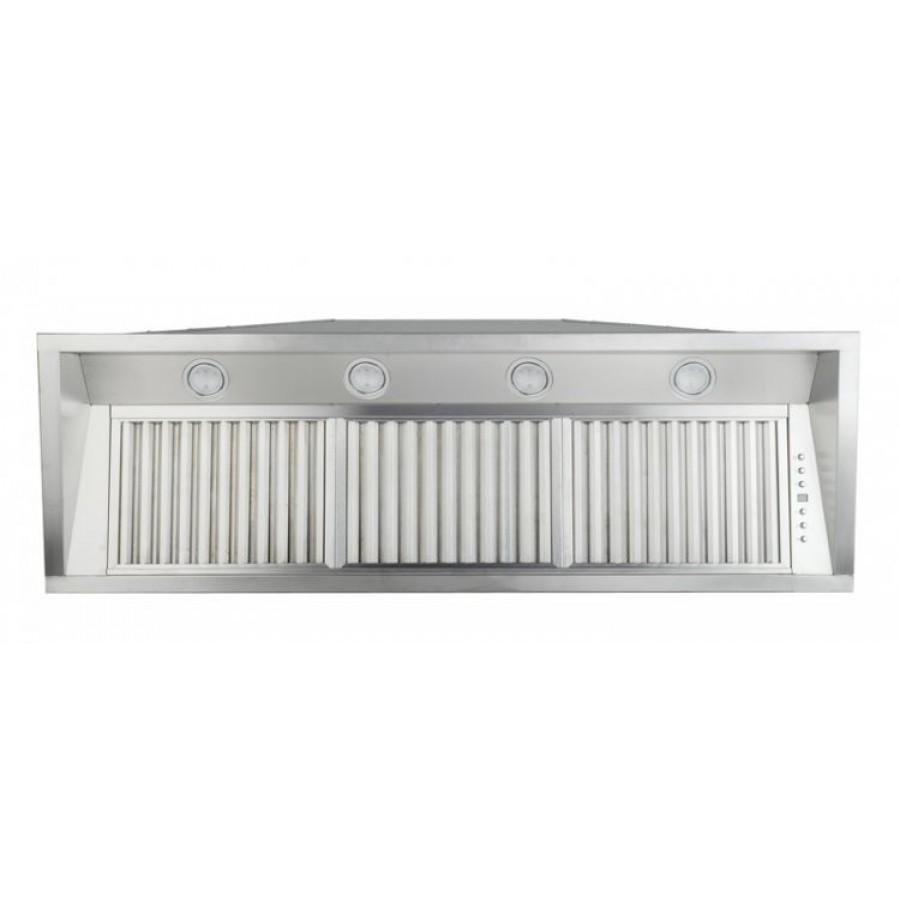

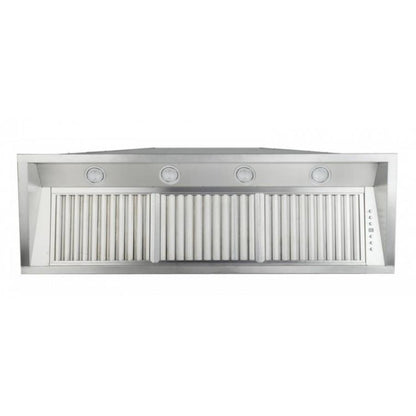

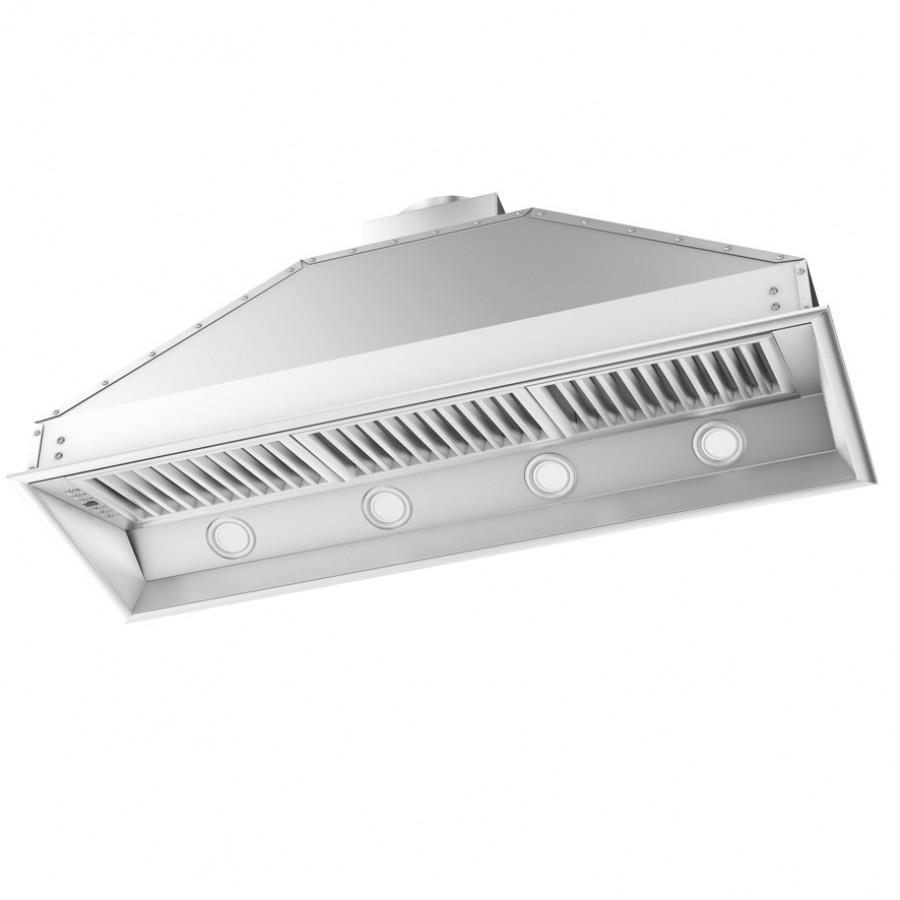

The ZLINE 46 in. ducted wall mount range hood insert (695-46) is stainless steel with 4 fan speeds up to 700 CFM. It installs inside custom cabinetry without a visible outer shell and includes a transition piece for 8 in. ducting.
46"wide
700CFM max
3-yearwarranty
Why it stands out

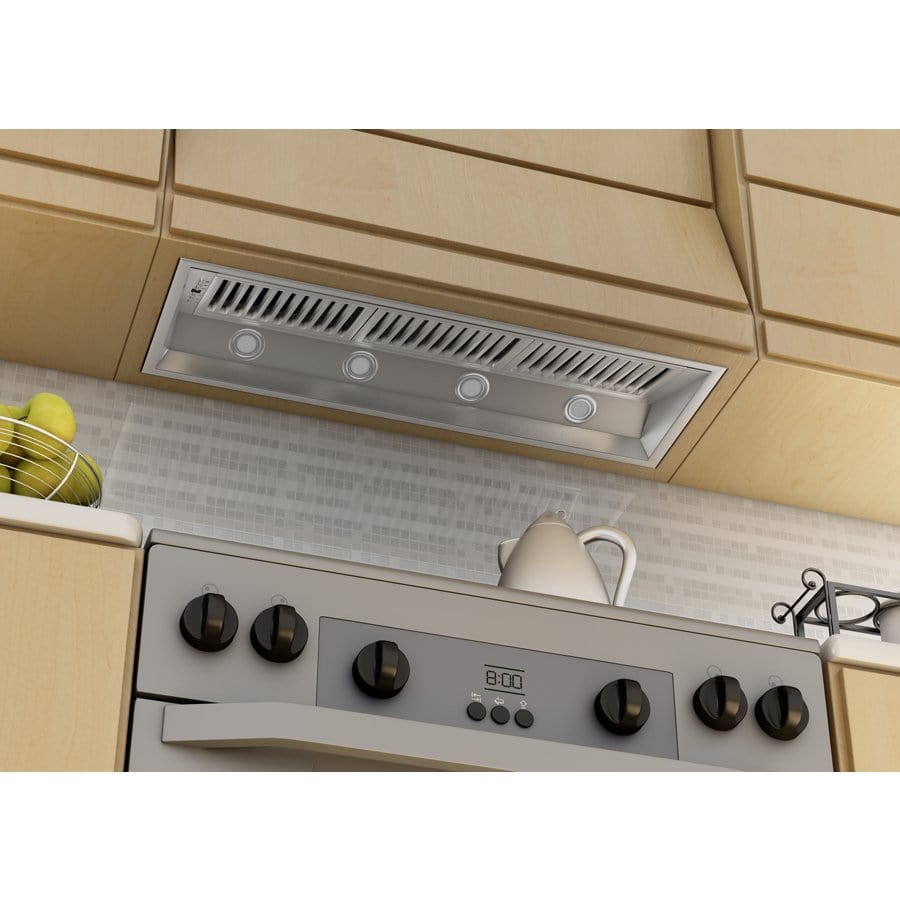

- Built-In Insert Design – It is made to be built into custom cabinetry, delivering professional-grade power without a visible outer shell.
- Corrosion-Resistant Stainless Steel – Brushed 430-grade stainless steel resists rust and corrosion, so the insert lasts for years.
- Control Panel – Easy push-button controls adjust the fan speed and lighting.
- Four Fan Speeds – Air flow choices are 280, 420, 560, and 700 CFM.
- Strong Ventilation – The top speed of 700 CFM moves a large volume of air away from the cooktop.
- Dishwasher-Safe Filters – Stainless steel baffle filters come out easily and can go in the dishwasher for routine cleaning.

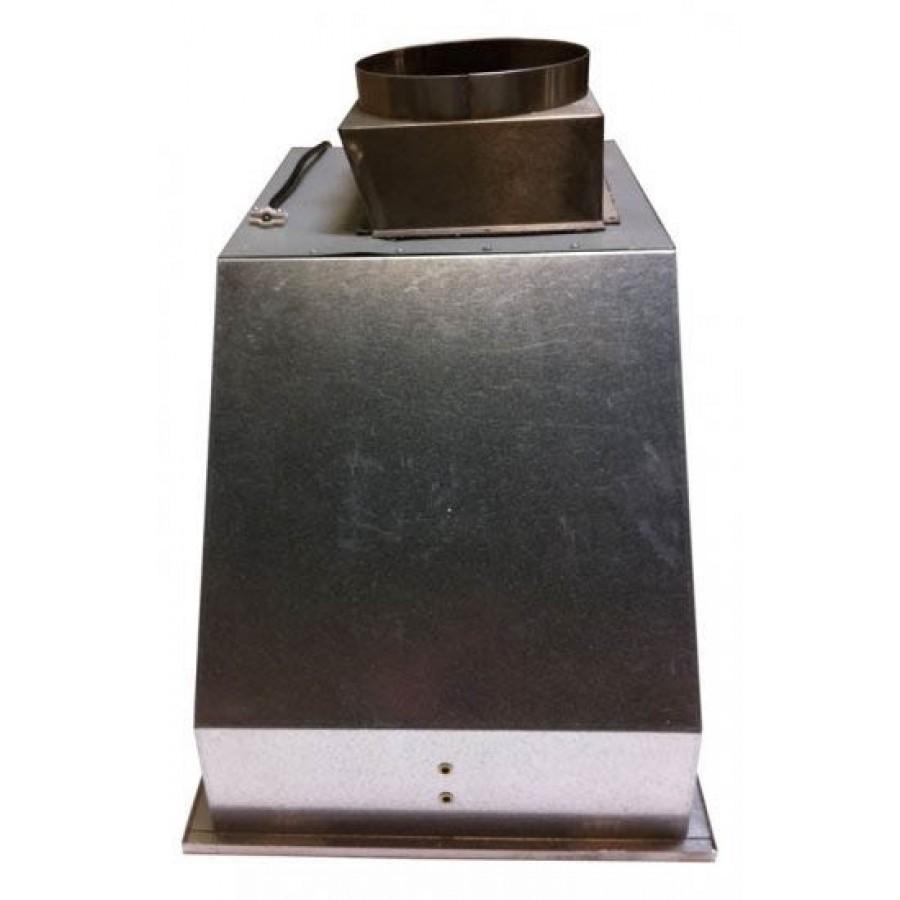

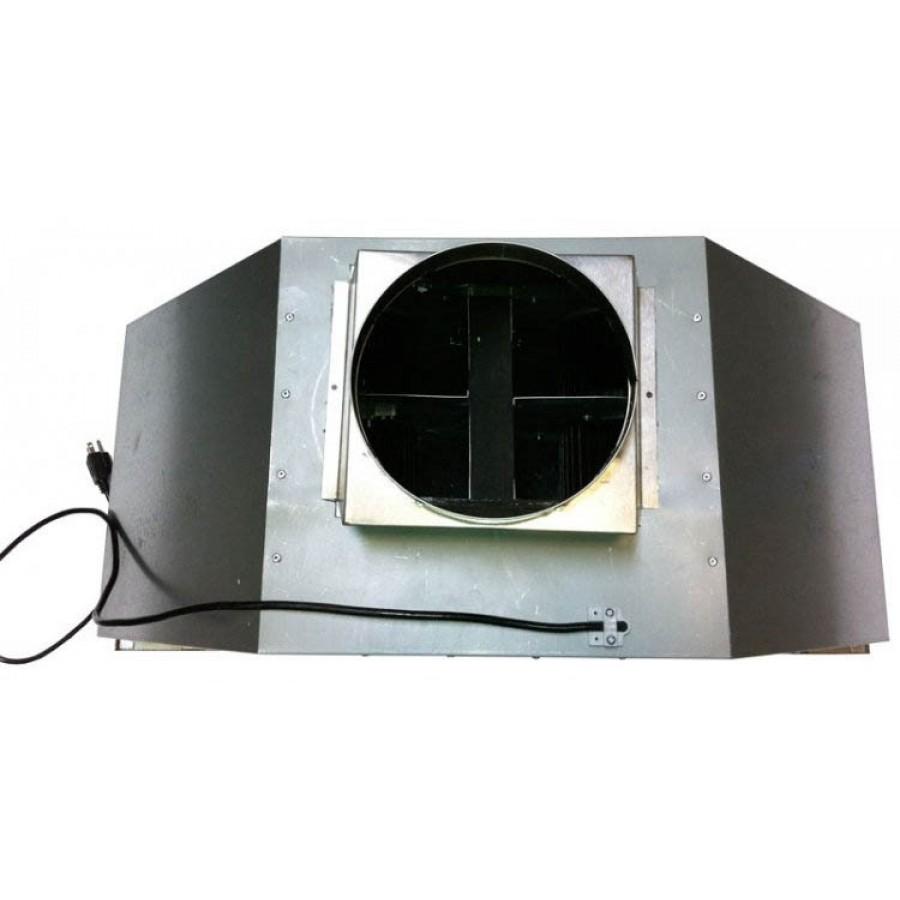

- Standard Ductwork – It suits standard round ductwork; an 8 in. diameter ducting transition piece is included.
More features

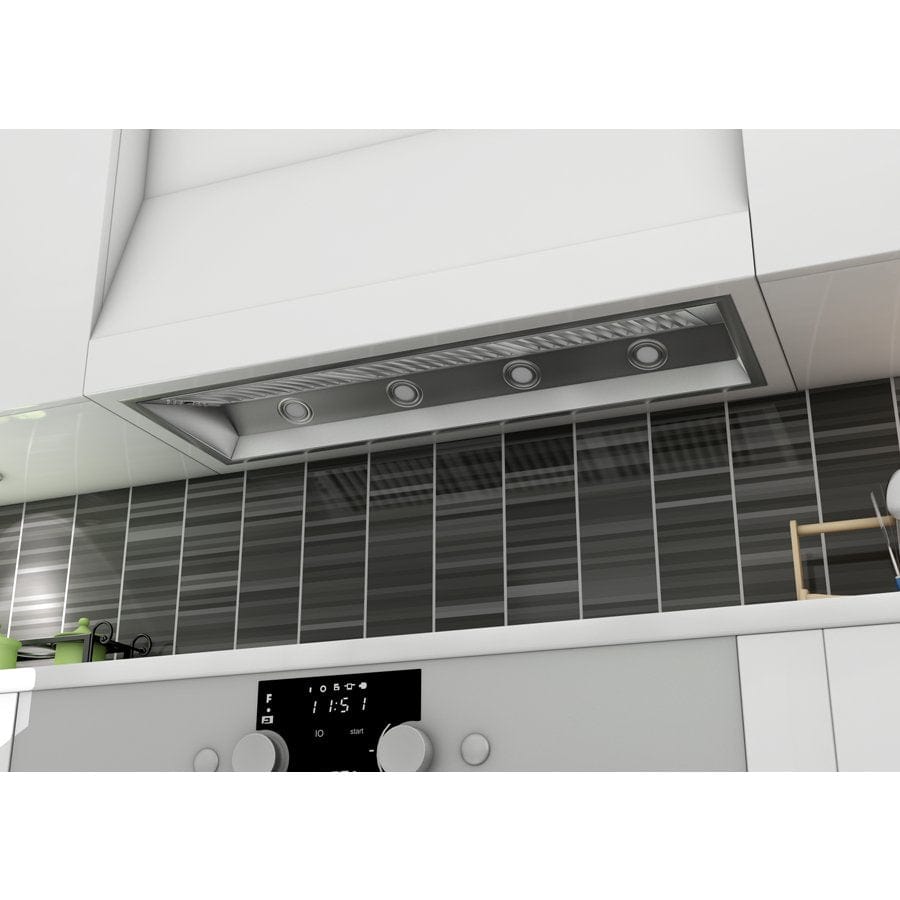

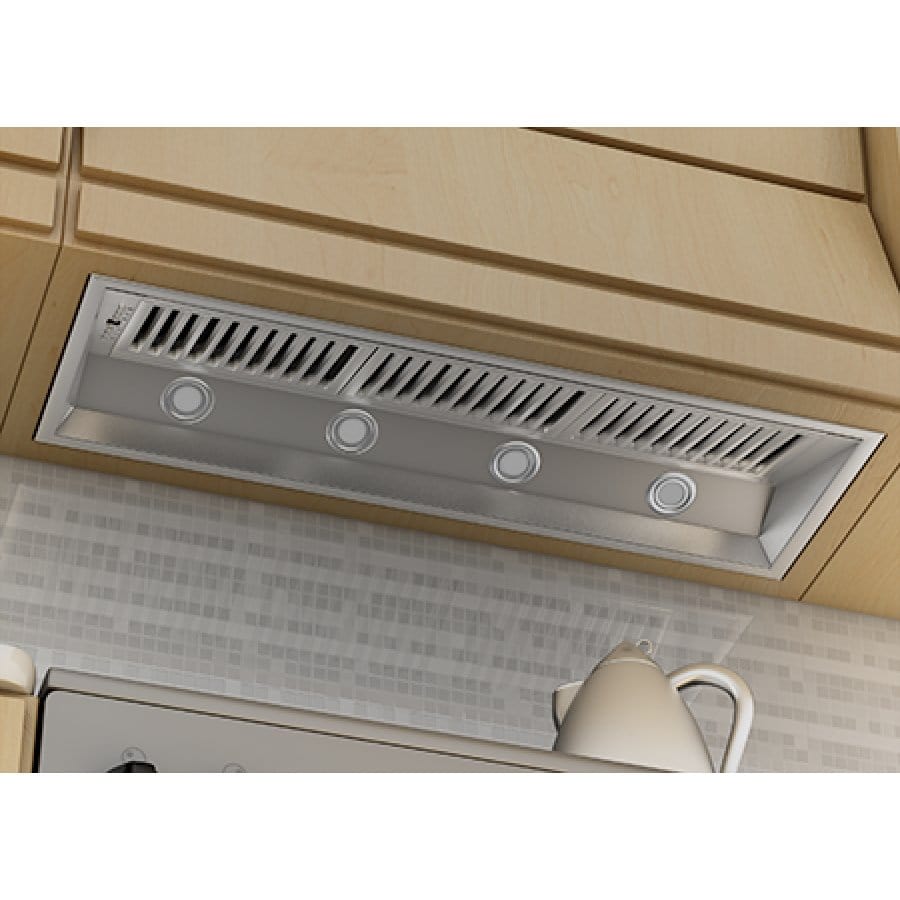

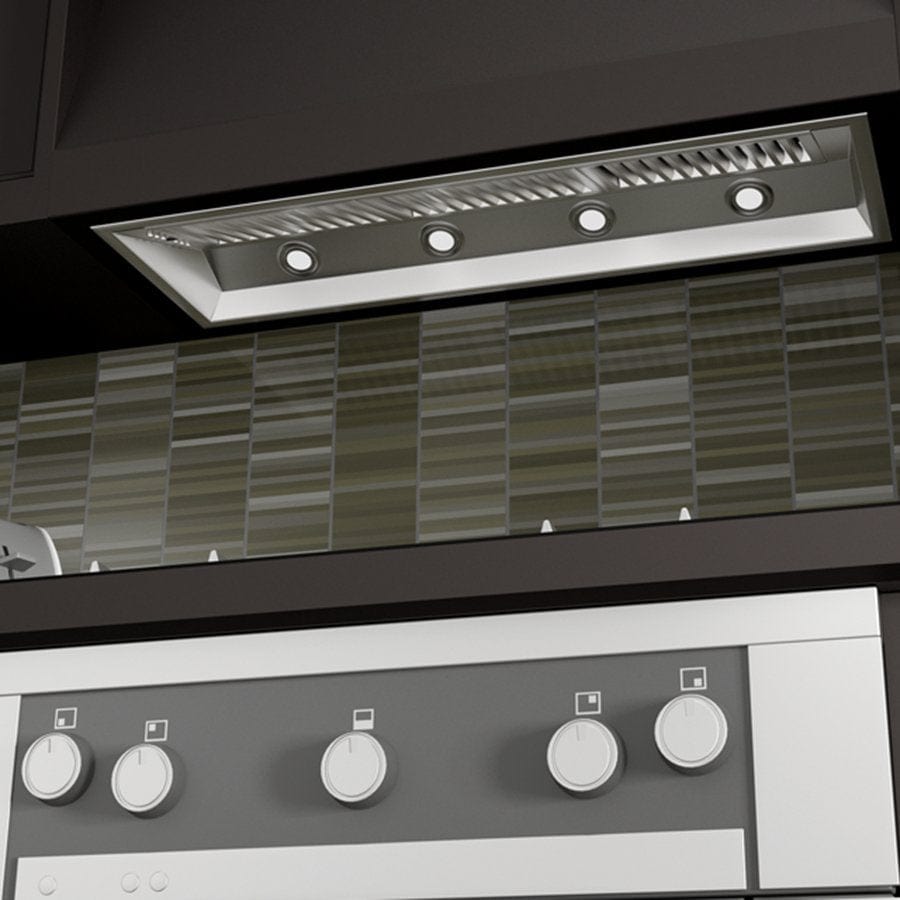

- LED Lighting – Energy-efficient LED lights illuminate the cooking surface below.
- Electrical Requirements – Must be connected to a dedicated 15-amp, 120V, 60Hz circuit using a NEMA 5-15 3-wire plug.
- Warranty Terms – Parts-only coverage lasts 3 years, and the motor is covered for life.
Key specifications

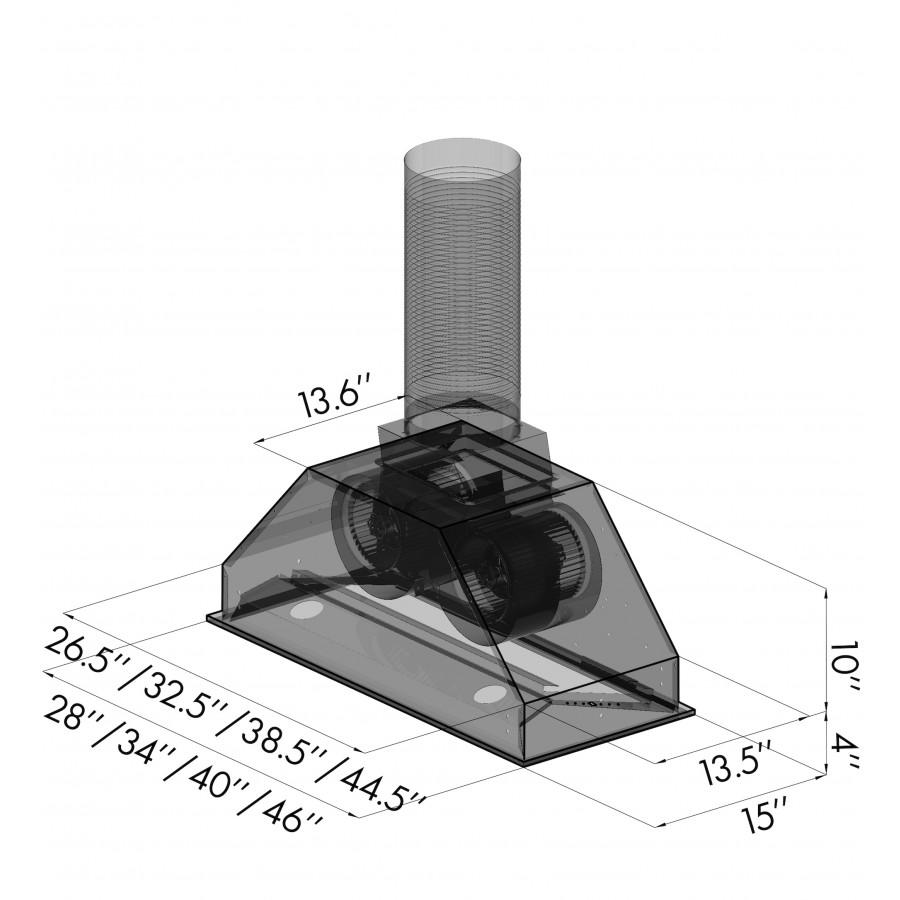

| Product Depth (in.) | 15 |
| Product Width (in.) | 46 |
| Product Height (in.) | 14.0625 |
| Appliance Category | Insert Range Hood |
| Color/ Finish Family | Brushed 430 Stainless Steel |
| Airflow (Q/L/M/H) | 280/420/560/700 |
| Motor | High Performance 700 CFM/4-Speed Motor |
| Filters | Stainless Steel Baffle Filters (Dishwasher-safe) |
| Mount Type | Insert |
| Number of Lights | 4 |
| Number of Speeds | 4 |
| Control Type | Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff) |
| Button Panel | Push Button Control Panel (4-Speed Fan Control/Lights/3 Minute AutoTimer with Delayed Shutoff) |
| Product Weight (lb.) | 55 |
| Decibels | 30/41/49/52 |
| Duct Size | 8 |
| Voltage | 110 |
| Amps | 5 |
| Certifications and Listings | ETL Listed,CEC Listed |
| Warranty | 3 year parts, life-time motor warranty |
Good to know
- Also available in 28 in. (695-28), 34 in. (695-34) and 40 in. (695-40).
- Not suitable for ductless/recirculating operation.
- Not certified for outdoor use.
